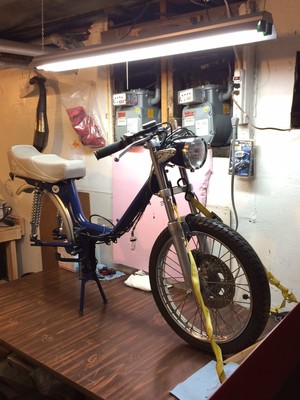

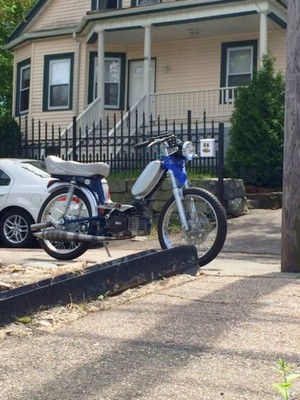

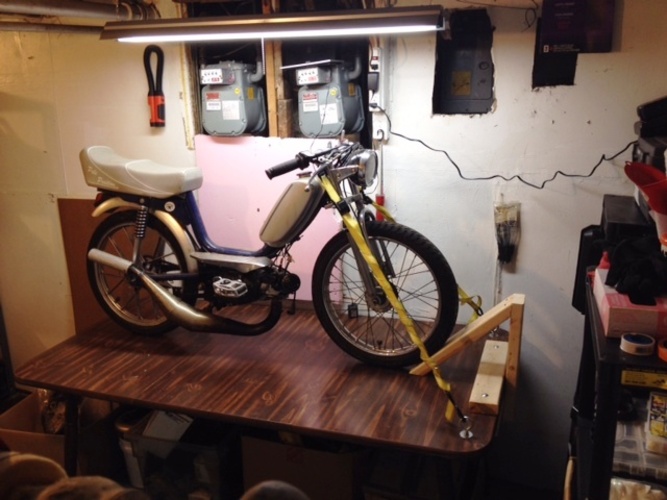

1977 Yankee Peddler aka #v1gilardoni
My one and only.
- Fully blue-printed/ported cylinder + bottom end
- OEM full circle crank w/INA bearings + balanced/trued by Vince @ MrCrankshaft
- BRN V1KS straight cut primary gear + clutch bell w/INA needle bearing
- HPI 300g weight + pull start adapter
- 2.1mm BTDC w/dual curve box (using "optional" curve)
- NGK BR7HIX @ 0.028"
- 1mm squish
- Top dykes ring only (@ 0.011") on piston

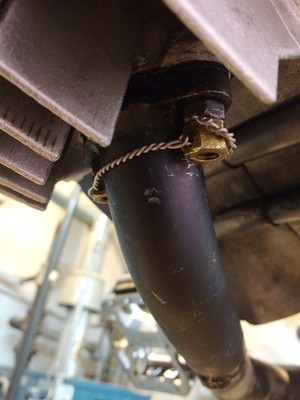

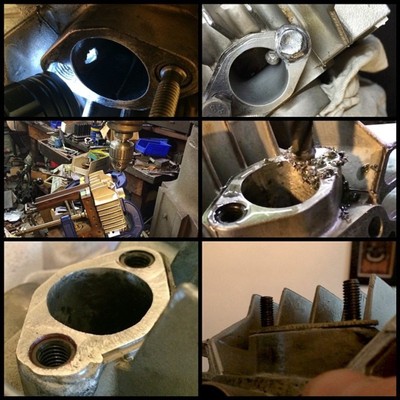

- M8 TimeSert exhaust threads w/M8-M6 heat treated studs

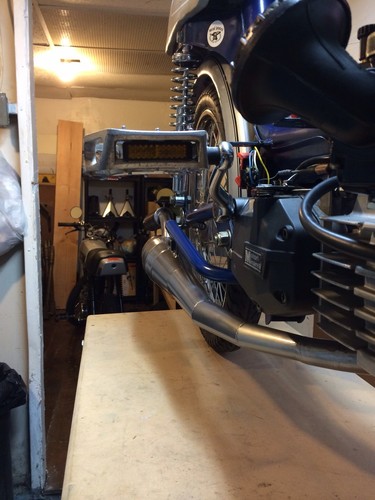

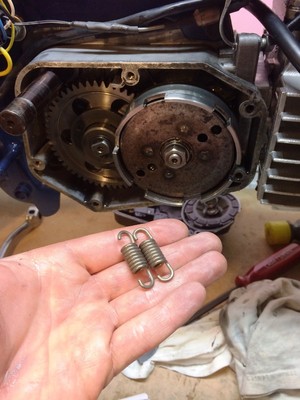

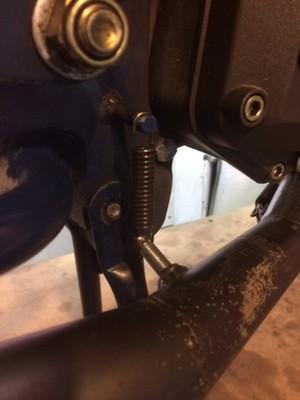

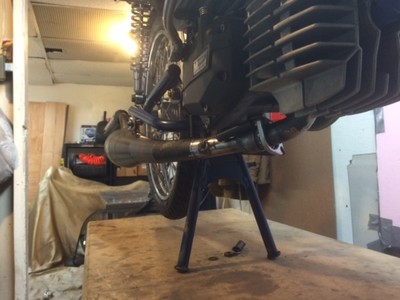

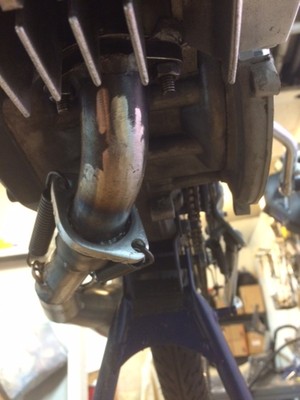

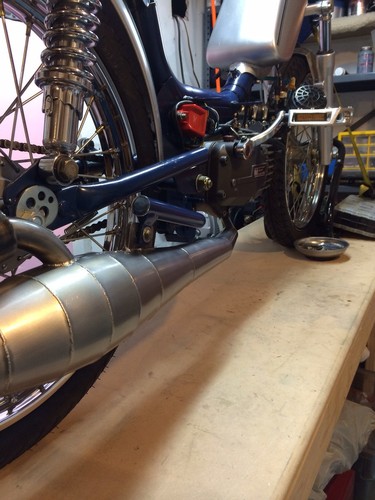

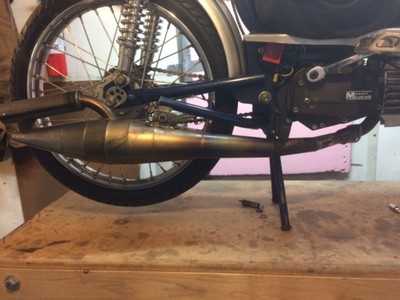

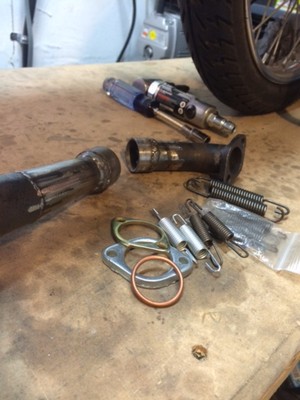

- Homemade 2-piece spring mounted exhaust setup w/Polini stainless springs

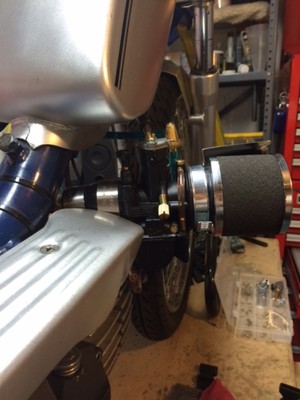

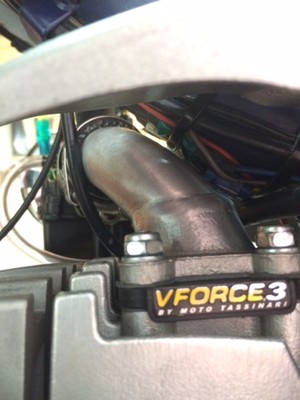

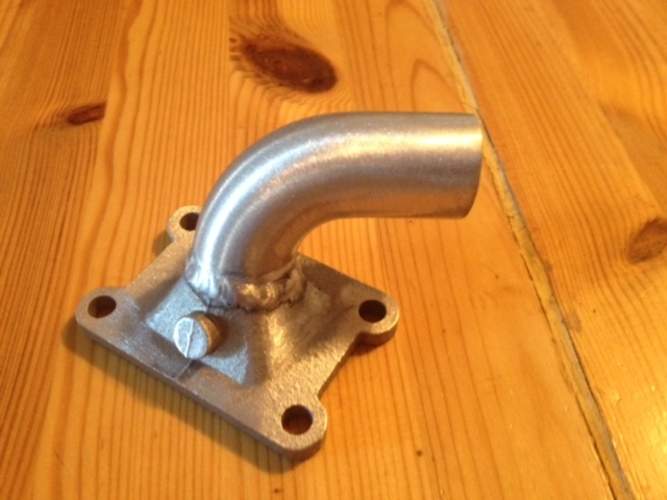

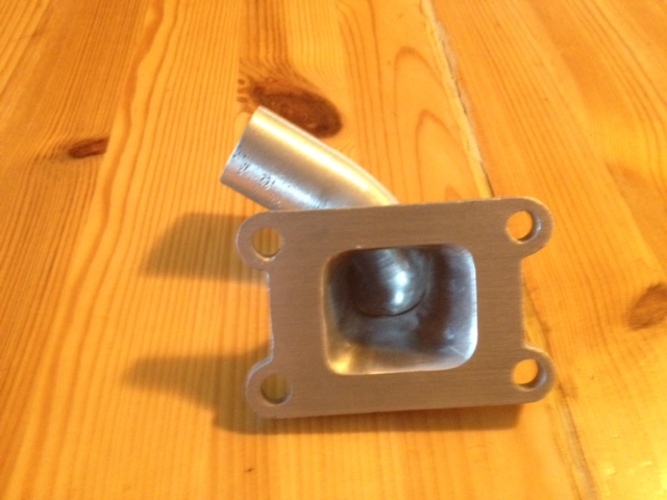

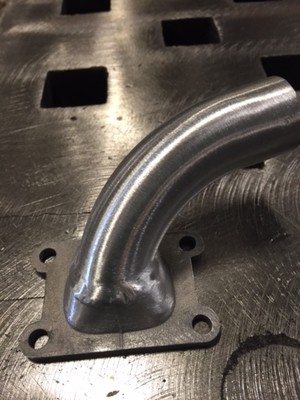

- Homemade aluminum intake manifold w/silicone coupler + stainless T-bolt clamps

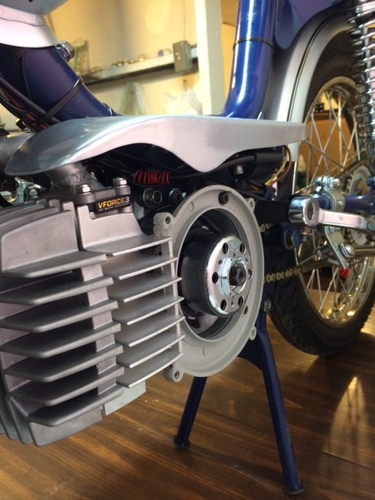

- VForce reeds
- Polini PWK needle, main, and idle jets
- JJN needle 2nd clip from the top
- Motul 800 double ester @ 32:1
- Two2 Cool synthetic clutch oil
- 11x36 gearing

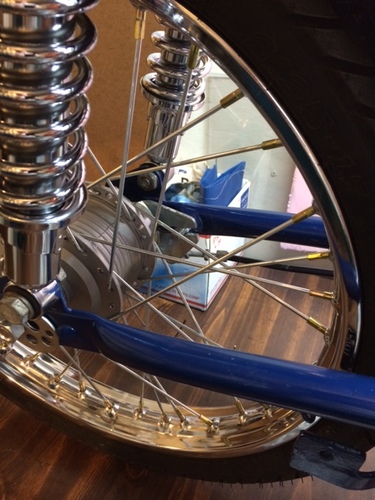

- 17" HD spoked rims w/sealed bearings on 2.25" IRC NR53s
- Motobecane Leleu brake plate, reinforced + machined for 12mm axle
- 80mm Polini brake shoes (rear)
- 300mm Xtreme shocks

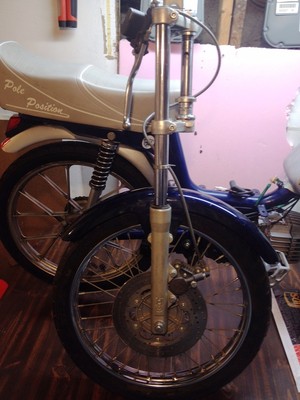

- OEM Tomos EBR disk brake front end, lowered 1.5"
- Trailtech tach + temp on MLM mounts

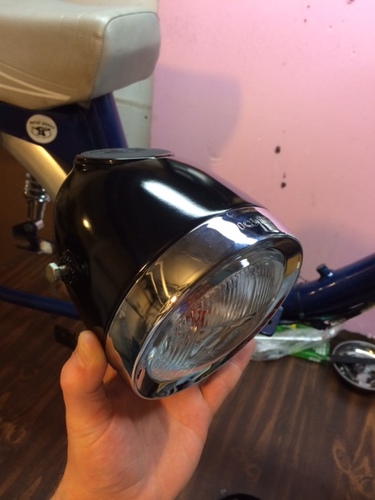

- NOS CEV Bullet headlight w/20W COB LED retrofit, filled/shaved extra holes
- "Pole Position Sport" buddy seat, lowered
- Welgo BMX platform pedals
...etc.
Currently: 67mph @ 12,000 RPMs = Hits 60mph without effort...hills, wind, doesn't matter. Polini needles/jets are the answer.
Future mod list: eh, it's fast enough I think.
Parts
engine
- Minarelli V1
- Minarelli V1 Stock Full Circle
- Peugeot 70cc Gilardoni
carburetion
transmission
exhaust
- Minarelli MLM BK100 Sidebleed
electrical
- Minarelli HPI Mini Rotor CDI
Tuning
Main 104 · Idle 42
