Billet

By Doug Williams · Eagle 3 · 1983

Added · Updated

1 / 21

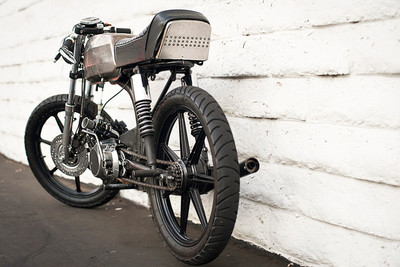

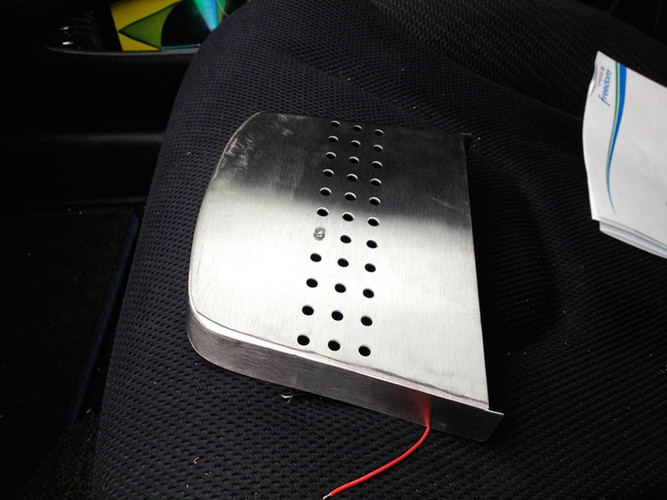

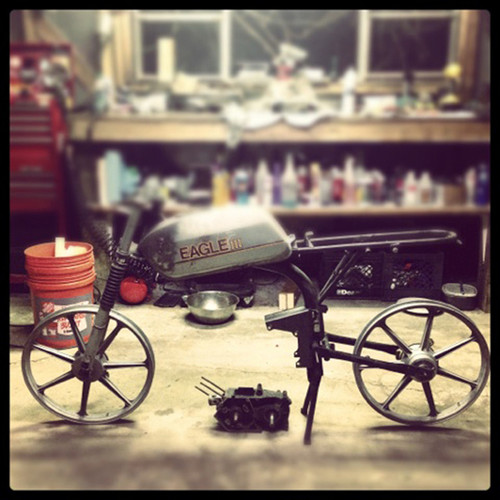

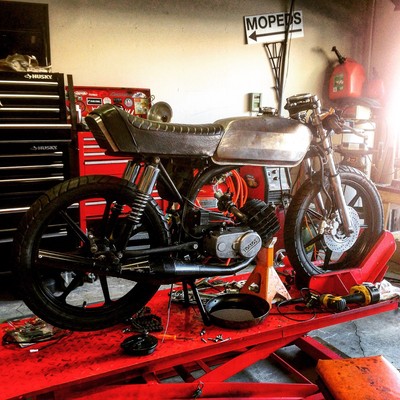

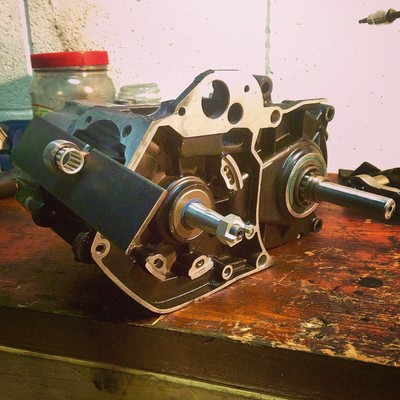

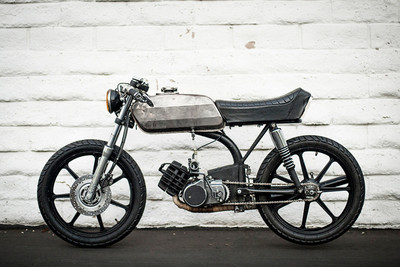

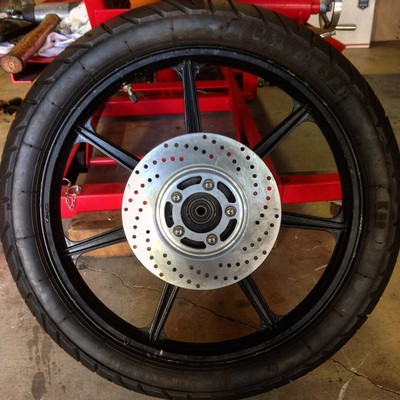

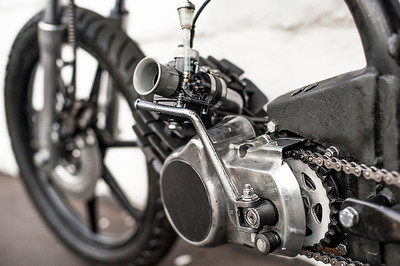

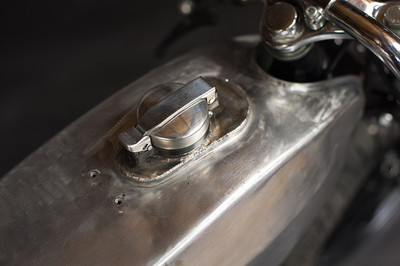

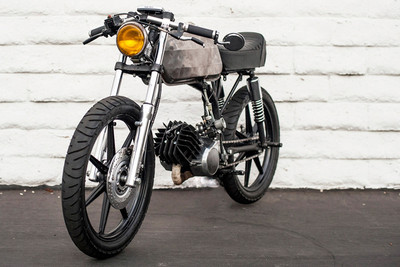

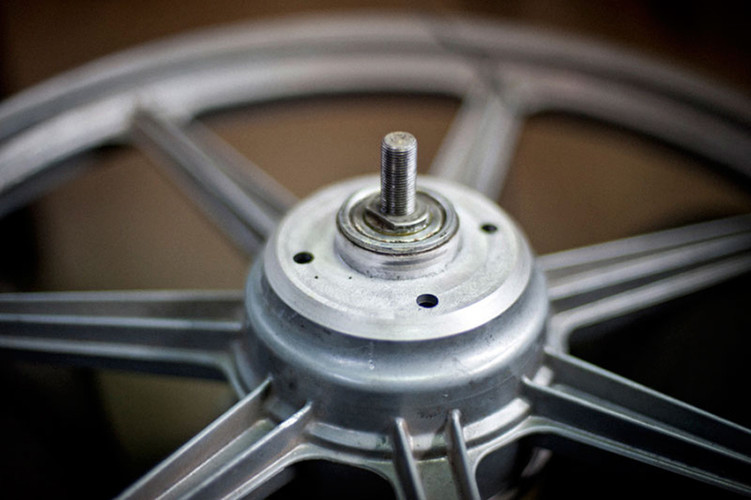

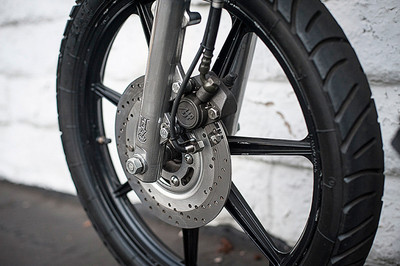

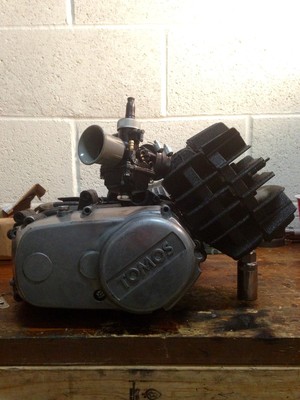

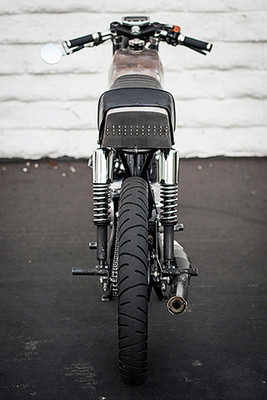

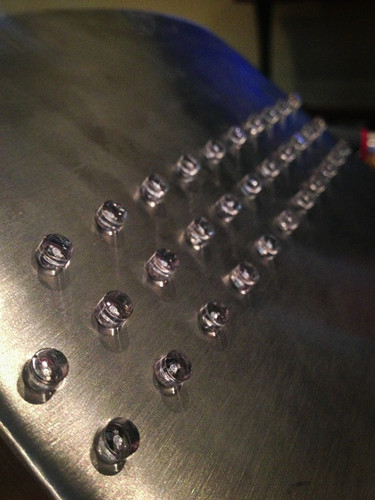

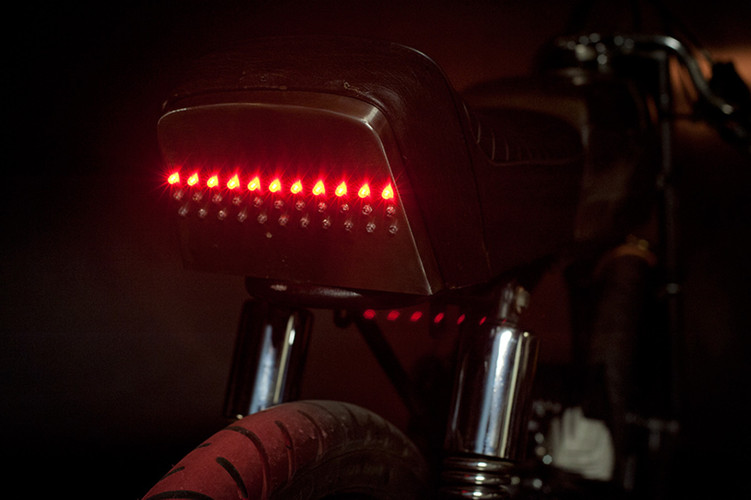

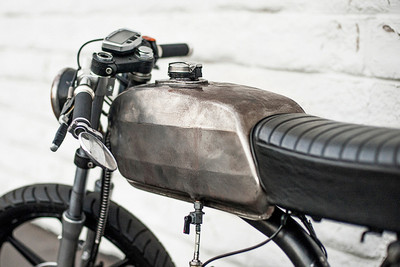

1983 Eagle 3 with a55 • Eurokit 47mm • Full Circle Crank • IDM CDI • Custom Tig welded gas cap, & Tomahawk engine mount • EBR Hyrdo Forks • 11 Tail & 22 Brake LEDs and custom rear pan • LED light, and on/off switch • OEM seat shortened 5 inches and lowered 2.5 • Black Wrinkle Frame, • Polished Tank • ATV Thumb Throttle • Rear wheel lathed 3mm to chain align and fit Tomos sproket. • Motomatic Destroyer Pipe • Custom 21mm Intake w/ 21mm Dellorto Carb • Case Matched & Ported • A3 Clutch 1st & 2nd Gear with Red & Yellow Springs • 28T x 20T Gearing • Custom Clip- Ons • Custom Disc Brake made from Tomos CDI as HUB stock Eagle III wheel • Trail Tech Vapor • 61mps GPS'd and Trail Tech confirmed

Parts

engine

electrical

transmission

  • A3 1st & 2nd Gear

exhaust

carburetion

Tuning

Main 110 · Idle 42 · Starter 60
