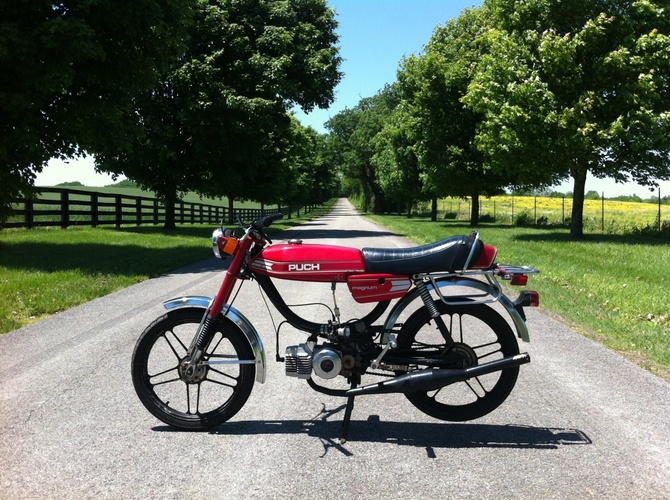

'78 Puch Moneysink

By Dylan Angle · Puch Magnum XK · 1978

Added · Updated

1 / 2
'77 Parlini reed kit, cylinder decked and port matched, transfers widened to previous case match, exhaust raised/widened/dropped 1mm, ringland ported single ring piston, reworked kstar narrow squish head. Rebuilt E50 with stuffed crank and a mildly lightened 3 shoe clutch with kickstarts. Pietcard 2041 auto retarding CDI with treats 12v stator and Olympia coil. 21 racing PHBG on an mlm intake, polini 4 petal reed block with an mlm Cali pipe. Bike is hardwired, with red led-strip taillights that I plan on making brake lights. Clubman bars, temp and tach gauges, and black mags with savas. Run a BU8H plug and 0w20 Mobil for tranny fluid, mix Saber at 80:1 with 93 octane. 17f-40r gearing, GPS'd at 52 on flat, 55 downhill.

Parts

engine

exhaust

  • Puch MLM Cali

electrical

  • Pietcard 2041 CDI

carburetion

Tuning

Main 92 · Idle 40 · Starter 60

Comments (2)

bobby sims — 11 years, 11 months ago

Nice Bike!

Josh Rampulla — 13 years ago

can ya upload a pic of the intake->carb setup? I got the same kit but trying to figure out what to do with intake
