Finally Done with this build. It was my first ground up, and I learned a ton along the way.

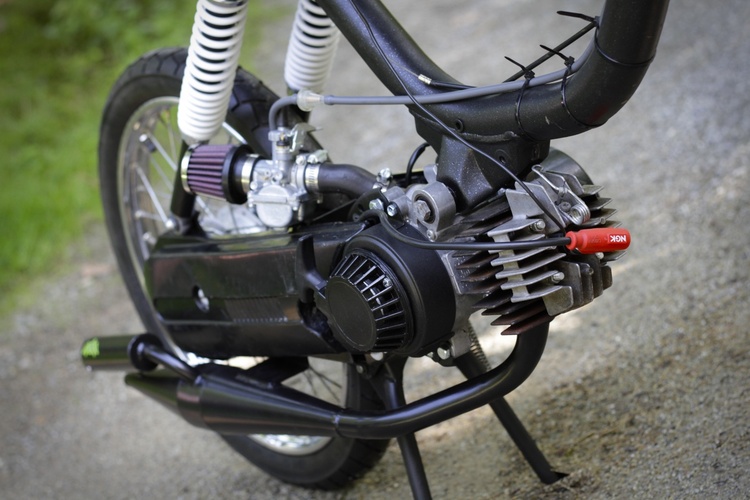

Engine:
-PA50-II cases matched to overbored Polini Kit
-Stock head widened to match bore and cut to standard compression by Graham Motzing
-77 Alu Stuffed crank
-Metrakit 19mm Derbi Intake modded to fit
-Boyesen .4mm CarbonTech Reeds
-Mikuni VM18 / K&N
-MLM Hobbit Sidebleed
-TJT Variator
-Black Pipes Pull Start Mod
Frame:
-Motor mount moved 8 inches rearward
-Modified / Reinforced subframe
-Hacked Magnum Seat
-Batavus Starflight Tank
-Suzuki K10 Fork and Wheel
380mm Shocks
Rallies:
Great Pumpkin Run - 2012
GPS'd at 55mph while running rich at break-in. Won't get above 390 very easily (long climbs at full throttle will get it there though). Just an ultra reliable, comfortable ped, great for rally use.
Engine:
-PA50-II cases matched to overbored Polini Kit
-Stock head widened to match bore and cut to standard compression by Graham Motzing
-77 Alu Stuffed crank
-Metrakit 19mm Derbi Intake modded to fit
-Boyesen .4mm CarbonTech Reeds
-Mikuni VM18 / K&N
-MLM Hobbit Sidebleed
-TJT Variator
-Black Pipes Pull Start Mod
Frame:
-Motor mount moved 8 inches rearward
-Modified / Reinforced subframe
-Hacked Magnum Seat
-Batavus Starflight Tank
-Suzuki K10 Fork and Wheel
380mm Shocks
Rallies:
Great Pumpkin Run - 2012
GPS'd at 55mph while running rich at break-in. Won't get above 390 very easily (long climbs at full throttle will get it there though). Just an ultra reliable, comfortable ped, great for rally use.
Parts
engine
- Honda PA50II
- Honda 70cc Polini
- Honda Hobbit Aluminum Stuffed
exhaust
- Honda MLM People's
electrical
- Points
carburetion
Tuning
Main 95 · Idle 12.5
Jack Pollner — 13 years ago
It has one on there now. I haven't had a chance to actually get out and take some real photos of this thing. The shots that are up here were the final shots I took before it was completed. Keep an eye out for some updates.
Eames — 13 years ago
no headlight?
Daniel Harney — 13 years, 1 month ago
Awesome. Thanks.
Jack Pollner — 13 years, 1 month ago
http://blackpipes.tumblr.com/post/5291429387/a-cheap-effective-pull-start-for-hobbits Check out that link. All the info you need to get it together.
Daniel Harney — 13 years, 1 month ago
How did you do the pull start? I would like to know how to do that!
