maxinator

by John Dibble III
Added: • Updated:

BUILD DESCRIPTION

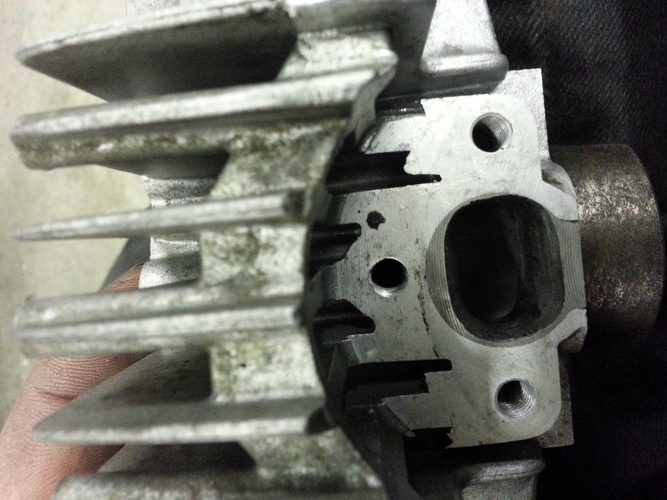

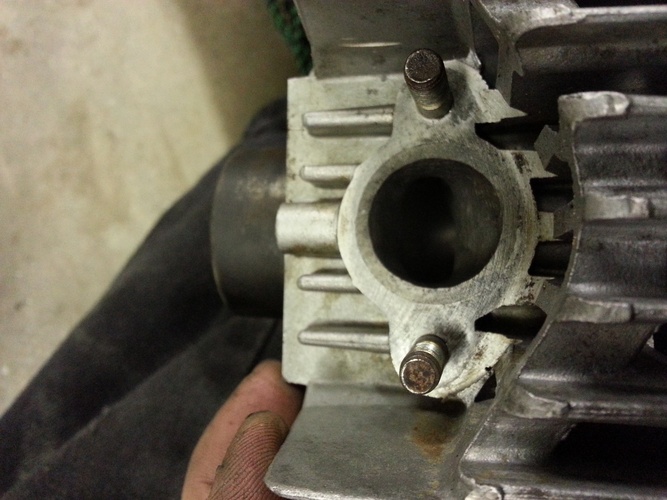

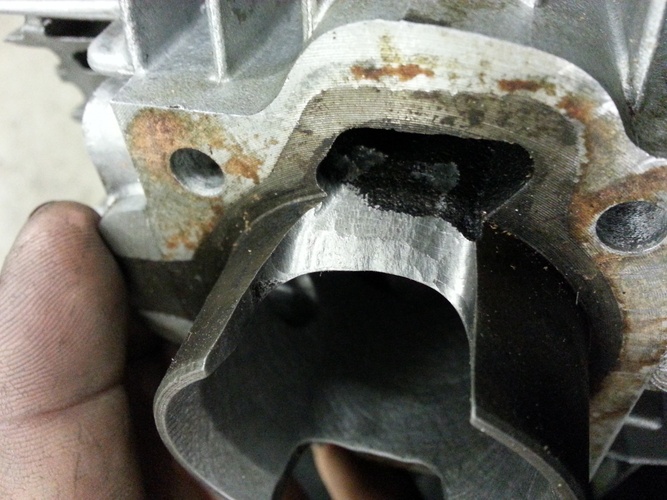

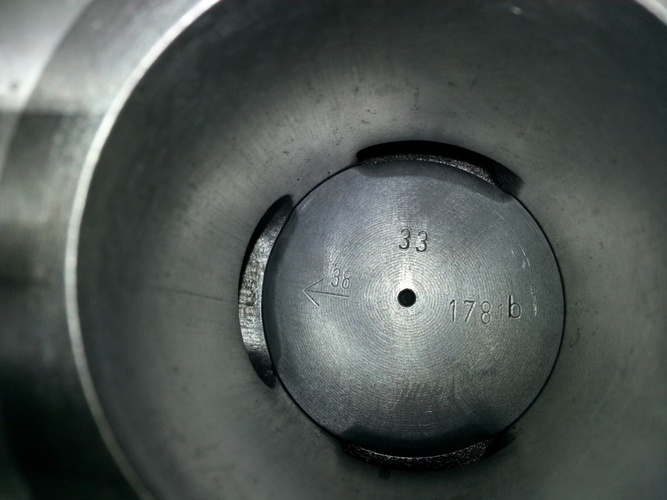

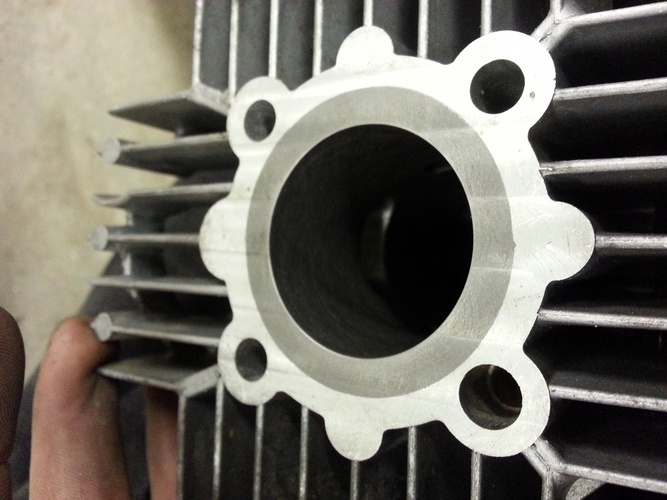

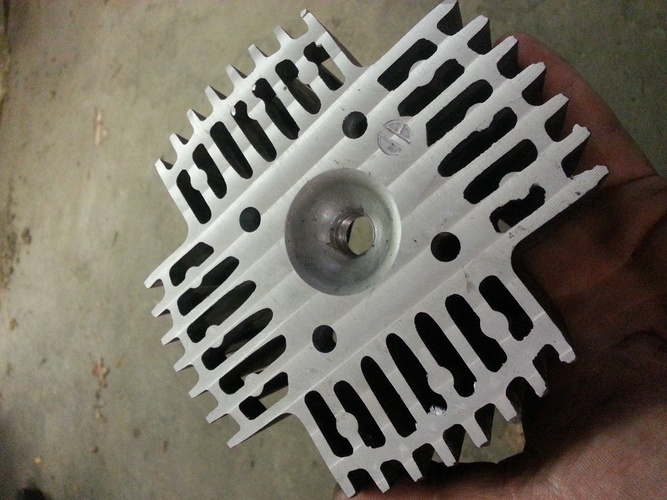

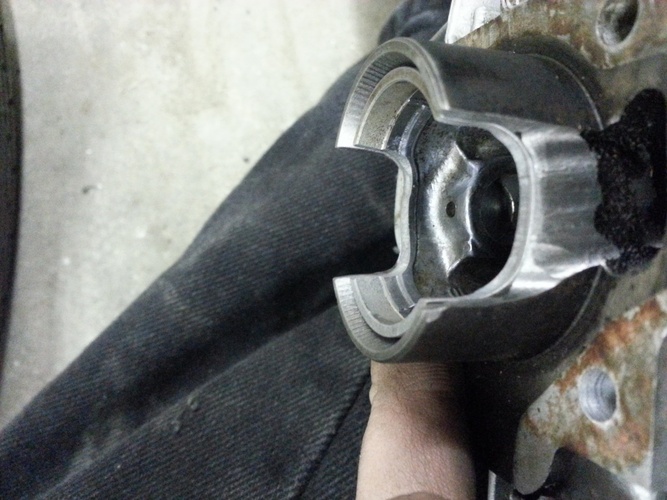

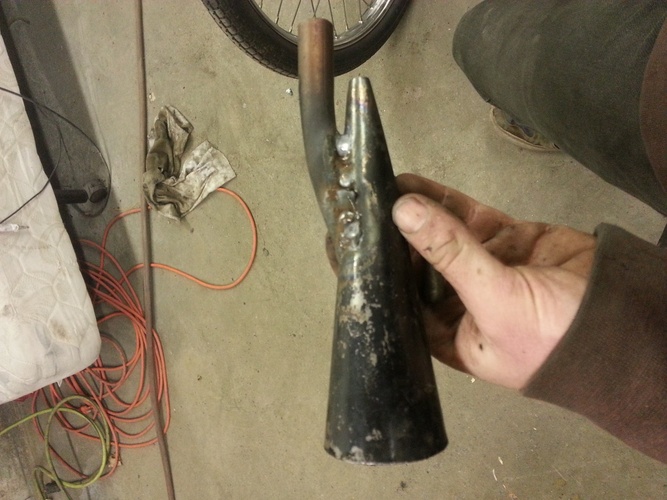

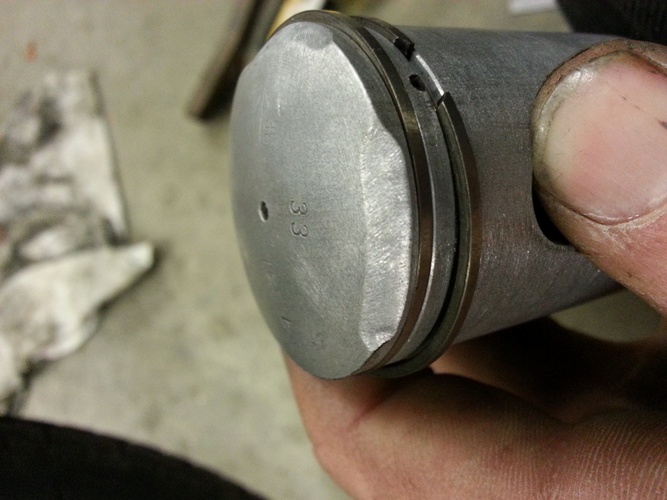

Picked up the bike and got it running and had a base gasket leak so i figured i would change everything when i had it apart. Here is everything i did to it and some pics. Decked the head and jug, knife edged transfers, matched jug and piston skirt cut outs, shaped the top of the piston to allow for full opining of transfers and exhaust ports, matched jug intake to 14mm bing intake, matched exhaust out put to header, drilled out 14mm bing intake and carb, fabricated cone insert to replace stock baffle, and raised lowered and widened both intake and exhaust ports, and timed to 17*. A whole bunch of stupid mods to all stock parts in an afternoon.

BUILD DETAILS

MOPED

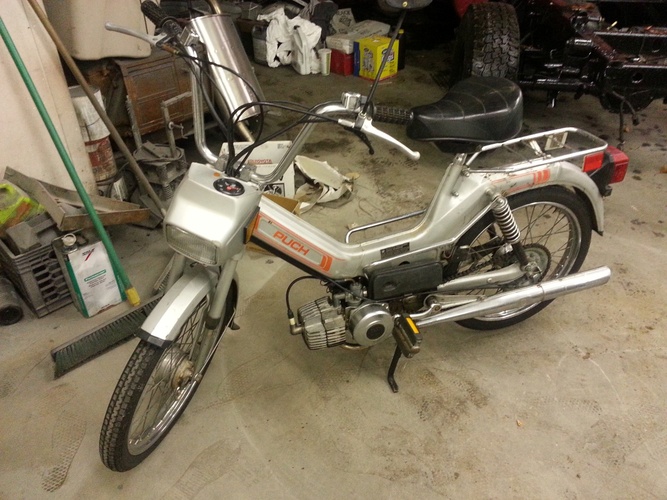

1985 Puch Maxi
